Opto Electric Composite Cable For Telecommunications Product

Applications:

The kind of cable is suitable for remote dc power supply system and the place to get electricity difficultly.The kind of cable can solve the problem in FTTH and in mobile communication network communications terminal equipment and power supply

Characteristics:

At the same time realize optical communications and electricity;Excellent performance of resistance to lateral pressure, mechanical and temperature.

Operating Temperature:-40℃~+70℃

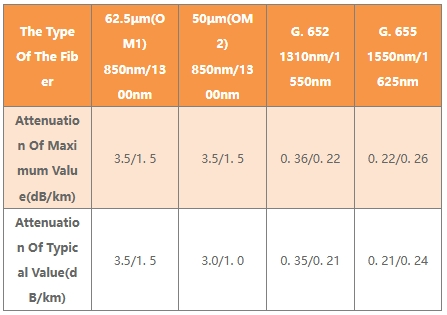

Transmission Performance

Note:Other types of fiber can be provided according to the customer's demands.

HSYZ5E+GJPF JH

Product Description:

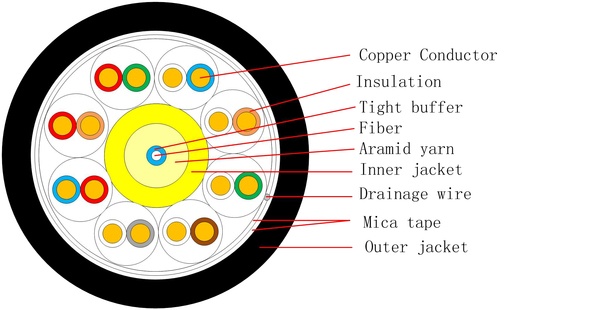

HSYZ5E+GJPFJH (Loose tube stranding, PE insulation, Tight buffer fiber structure, Aramid yarn strengh member ; Mica tape ;LsZH Outer sheath)

Standards:

YD/T 1019-2013 Polyolefin insulated horizontal twisted pair cables for diaital communicationsYD/T 1258. 2-2009 The series of indoor optical fiber cables Part 2: simplex and duplex cable for use in terminated cable assemblies

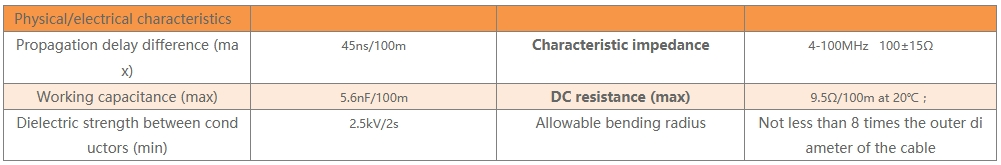

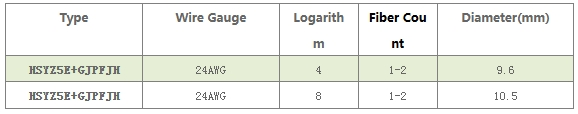

Structure Parameters
