Products

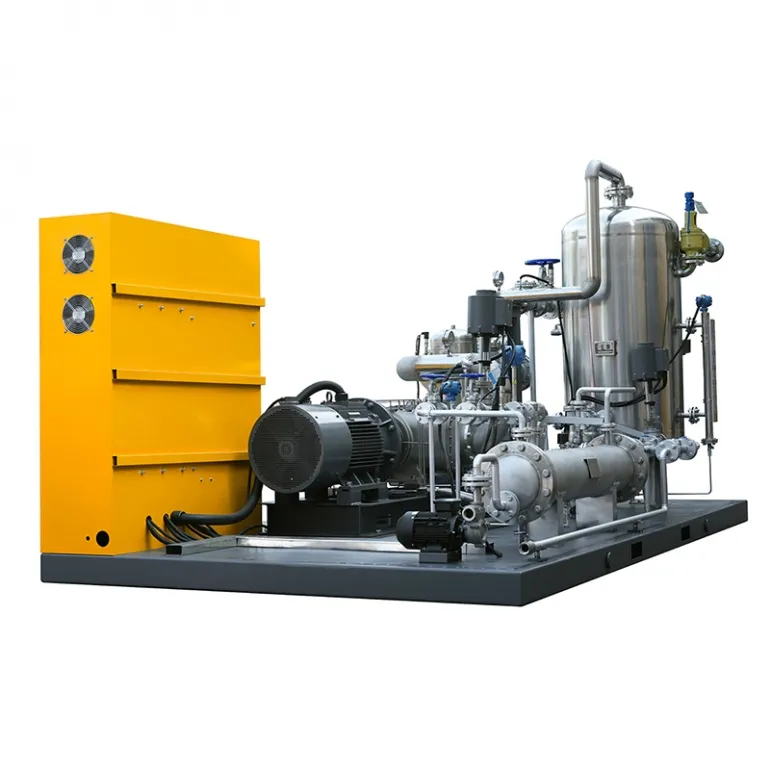

Screw Steam Compressor

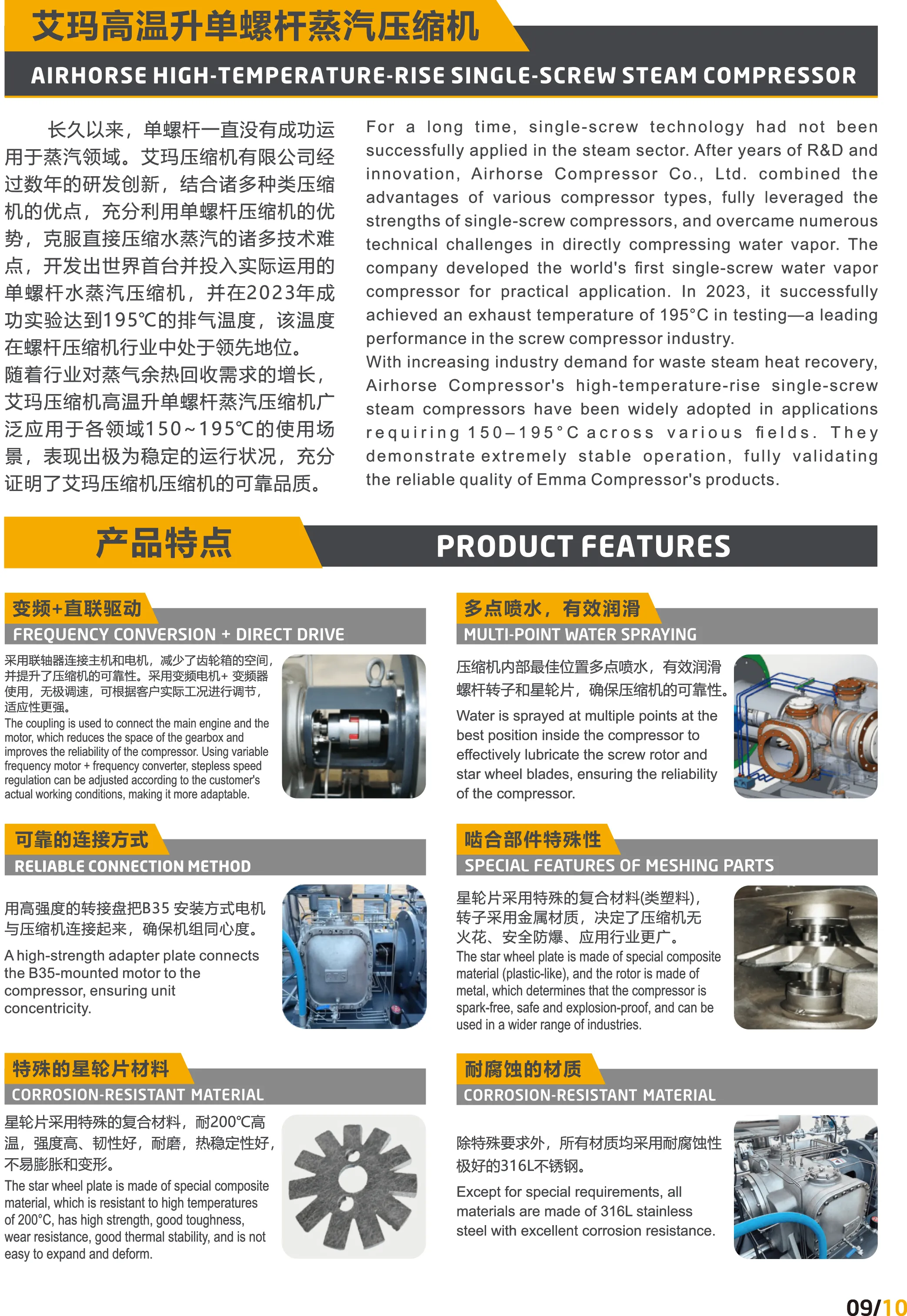

screw steam compressor—often referred to simply as an “MVR screw compressor”—is a compressor dedicated to water-vapor service and is widely used in Mechanical Vapor Recompression (MVR) evaporation, concentration, and drying systems. Its key task is to compress low-temperature, low-pressure secondary vapor (typically produced by self-evaporation or flash evaporation of the process liquid) to a slightly higher pressure, raising its saturation temperature to about 195 °C; the resulting higher-energy steam is then returned to the process as a heat source, enabling its reuse.
Features
- • Axial force balance / Radial force balance
- • Star wheel plate replacementcycle 100,000 hours
- • Bearing life is up to100,000 hours
- • Low operating noise
- • Low vibration and high reliabilityof the whole mac（Originally imported from Europe, a composite laminate ofglass fiber and resin, with high strength and good wearresistance. The maximum heat-resistant temperature canreach 200 degrees）
Why Choose Us ?
High Quality Control
AirHorse ensure every machine Runs well more than 15 years
Quickly Effect Shipment
Stock Available + Very Quickly Effect Shipment
24 Hours Service
24 Hours Service Always at your service
AirHorse is an internationally renowned manufacturer of screw air compressors, please contact us for more information on air compressors. For a long time to provide you with high quality air compression services.
Recommend
Electric Portable Screw Air Compressor
The electric portable screw air compressor comes on an integrated wheeled / skid chassis with a tow bar and forklift pockets, so one pickup can move it, and relocation takes less than 15 minutes. No cranage or re-cabling is needed, making it perfect for sequential work across multiple sites or rapid deployment in confined urban job-spaces.
Diesel Portable Screw Air Compressor
A diesel-powered portable screw air compressor—driven by a 30–550 kW engine—operates entirely off-grid. Mounted on a wheeled trailer, skid, or crawler chassis, it can be towed straight to the job, making it perfect for roadworks, tunnels, mines, oilfields, and disaster-relief sites scattered along long corridors. Moving it around on site takes nothing more than a pickup or small tractor; no cranes or additional power distribution are required.
Centrifugal Steam Compressor
A centrifugal steam compressor is a vapor-compression device that converts the kinetic energy of water vapor into pressure energy through a high-speed impeller. It is a common core component in Mechanical Vapor Recompression (MVR) systems and is especially well suited to high-flow, low-pressure-ratio applications. Compared with screw steam compressors, the centrifugal version delivers larger capacities, oil-free operation, and lower vibration, making it the preferred energy-efficiency upgrade for large-scale evaporation, distillation, crystallization, and drying processes
Centrifugal Compressor
A single centrifugal air compressor can easily deliver more than 200 m³/min of compressed air, and—even in multistage configurations—maintains a compact footprint, occupying 30–50 % less floor space than a screw compressor with the same flow rate. The larger the flow, the greater the economic advantage, making it especially well-suited for high-demand sites such as steel, petrochemical, cement, and glass plants that consume “hundreds-of-tons” worth of compressed air each day
